Complete 10' x 6.5' LED Video Wall Kit

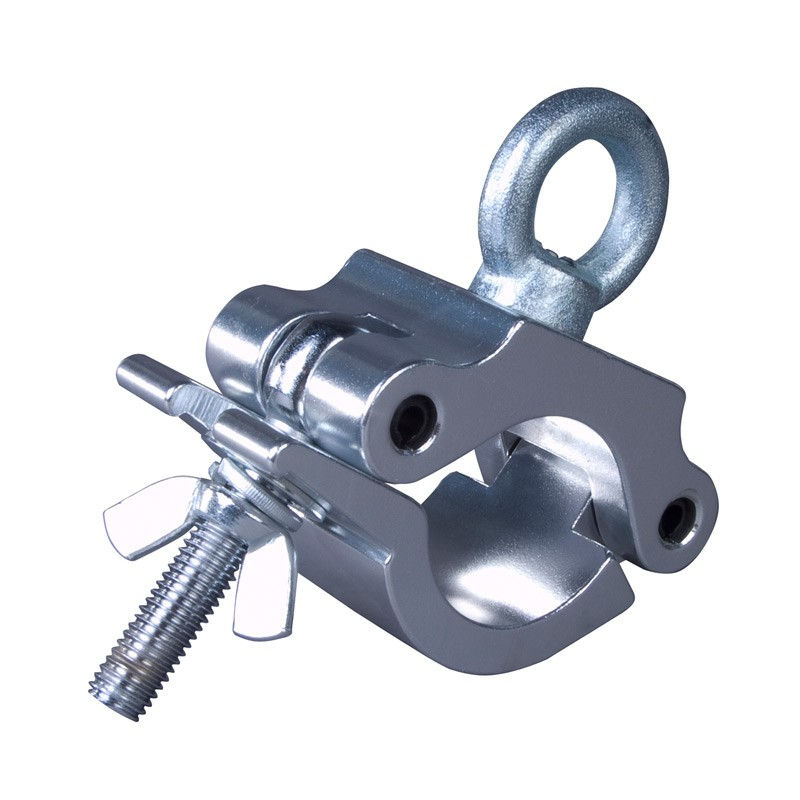

Includes (24) AV3 Panels, (1) MCTRL300 Video Controller, (6) Rigging Bars, (6) Shackles, (3) Roadcases, (6) Eye Clamps, Power and Data Cables.



Bonus

Free Signage Player





Video Panels



Video



Press Release



The AV3 is a high resolution video panel from ADJ. Each panel has a pixel pitch of 3.91mm with a configuration of a 3-in-1 RGB SMD2121 LED. The brightness is 1000NITS. There are 4 mini modular panels with-in the master panel. This allows for easy serviceability. The AV3 connections include powerCon In/Out and Ethercon In/Out. This panel also features a Novastar receiving card.



SPECIFICATIONS:

• Pixel Pitch: 3.91mm (0.25”)

• LED Configuration: 3-in-1 SMD2121 LED

• Pixel Density: 128x128; 65536 per square meter

• Size :19.75” x 19.75” x 4” / 500 x 500 x 100mm

• Module Quantity: 4

• Weight: 20 lbs. / 9kg.



MECHANICAL RATINGS:

• Surface Flatness: Gaps<0.5mm



OPITCAL RATINGS:

• Brightness: 1000 NITS

• View Angle: Horizontal 120°/Vertical 120° @ 13 ft. (4m)

• Gray Scale / Display Color: 14-bit

• Brightness Adjustment: 0~100% 100 Levels

• Processing: 14-bit



POWER SUPPLY:

• Operation Power: 100~240V 50-60Hz

• Max. Power Consumption: 170W/per panel

• Ave. Power Consumption: 70W/per panel

• Connections Power/Data: Power-PowerCon In/Out; Data EtherCon In/Out



CONTROL SYSTEM:

• Control Mode: Nova Star Synchronous System with Control via DVI

• Frame Update Frequency: 50-60Hz

• Scan Mode: 1/16

• Refresh Rate: 1920Hz

• Support Input: Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI

• Control Distance: Ethernet Cable <100m or Fiber Optic>120m

• Support VGA Mode: 1024 x 768, 1280 x 1024, 1600 x 1200, 1920 x 1280

• Brightness Correction: Pixel, Module, Cabinet



ENVIRONMENTAL:

• Operating Temp / Humidity:  Fahrenheit: -4° + 104° / Celsius: -20° + 40°/ 10-90% (No Condensation)

• Operating Life / MTBF: 50,000 Hours / 5,000 Hours

• Protection Level: IP20 (Front and Back)

• Out of Control Rate: <0.02%

• Listings:  ETL, CE, FCC Class A



CABLES:

Cabinet to Cabinet Data Link Cables (NEUTRIK Ethercon Connectors)

MCTRL-300 Processor to Cabinet (NEUTRIK Ethercon Connectors)

VX4S Processor to Cabinet (NEUTRIK Ethercon Connectors)

NOVA PRO HD Processor to Cabinet (NEUTRIK Ethercon Connectors)

NEUTRIK powerCON Link Cables

NEUTRIK powerCON Main Power Cables







Video Controller



Video



The MCTRL-300 is a controller for ADJ's AV6 LED video panels. It features one DVI signal source input and two RJ45 pixel-data outputs.

The controller is easily configured via USB and it will drive up to 1.3 million pixels supporting the following resolutions: 1280 x 1024, 1024 x 1200, 1600 x 848, 1920 x 712, 2048 x 668.



Specifications

• Control Mode: Synchronous Display with Control PC by DVI

• Frame Update Frequency: 50-60Hz

• Scan Mode: 1/12 Duty

• Refresh Rate: 1200Hz

• Support Input: Composite, S-Video, Component, VGA, DVI,

  HDMI, HD_SDI

• Control Distance: Ethernet Cable <100m or Fiber Optic>120m

• Support VGA Mode: 1280 x 1024, 1024 x 1200, 1600 x 848, 1920 x 712, 2048 x 668

• Brightness Correction: Pixel, Module, Cabinet

* Requires a Video Source (sold separately)







Signage Player

BrightSign HD1023



With the BrightSign HD1023 enjoy flawless Full HD single video decoding, mainstream HTML5 performance and simultaneous playback from local, networked and streaming sources. Includes the standard I/O package of Gigabit Ethernet, GPIO, and analog/digital audio.  Plus additional interactive options via USB 2.0 (type A), and serial ports to fully engage your audience.



  • Single 1080p60 video decoding
  • Video Codecs: H.265, H.264(MPEG-4, Part 10), MPEG-2, MPEG-1
  • Video Containers: .ts, .mpg, .vob, .mov, .mp4, .m2ts, .wmv
  • Images: BMP, JPEG, PNG
  • Audio: MP2, MP3, AAC, and WAV (AC3 is passed through)
  • HTML5



Spec Sheet



SMS-LEDWALL24

$38,050.00 Regular Price
$30,800.00Sale Price
  • Shipping and Tax

    Price includes standard ground shipping, continental US only. Contact us to arrange special shipping instructions prior to placing order. Shipping to AK and HI also available. No Tax outside of CA
